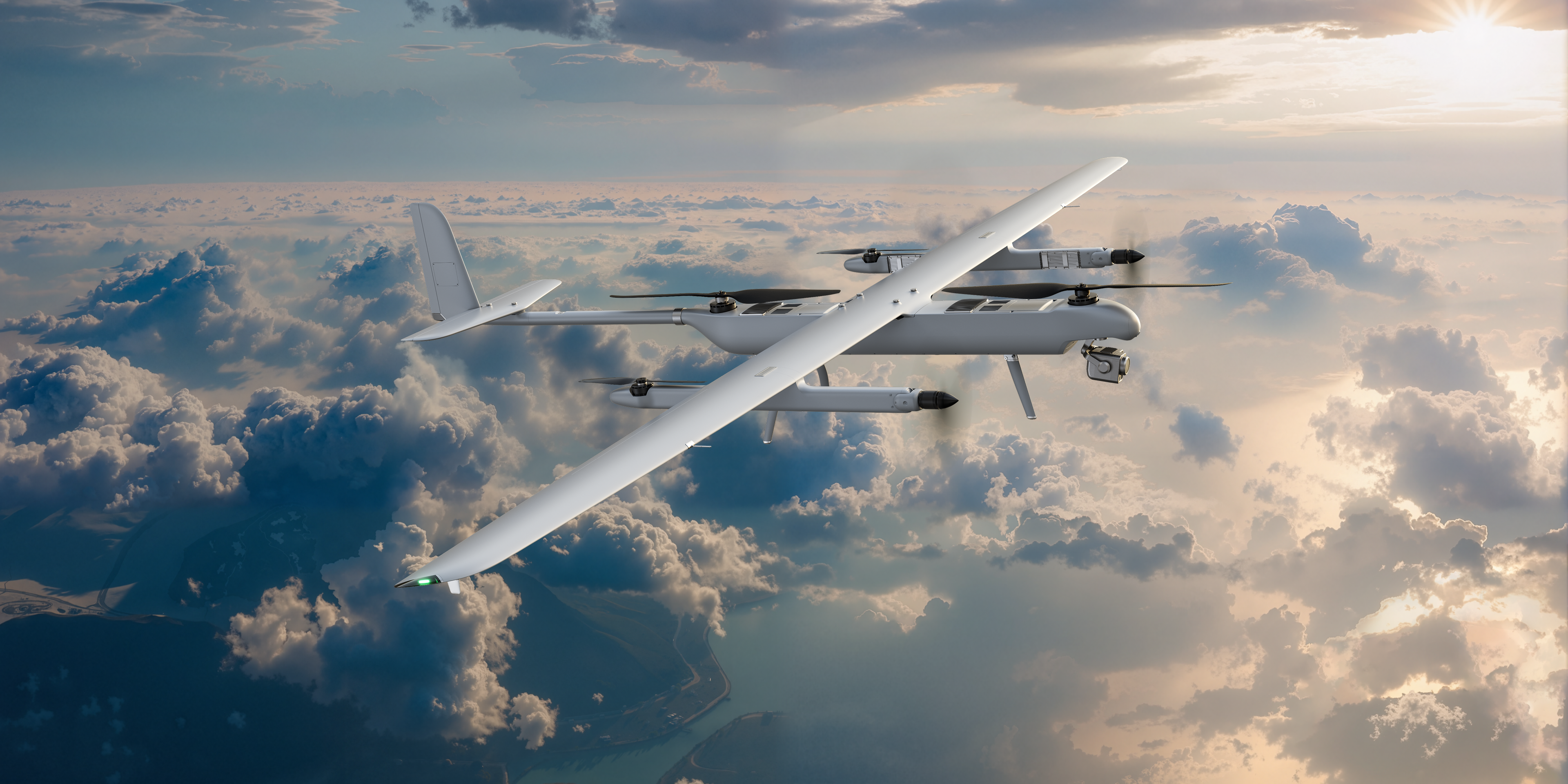

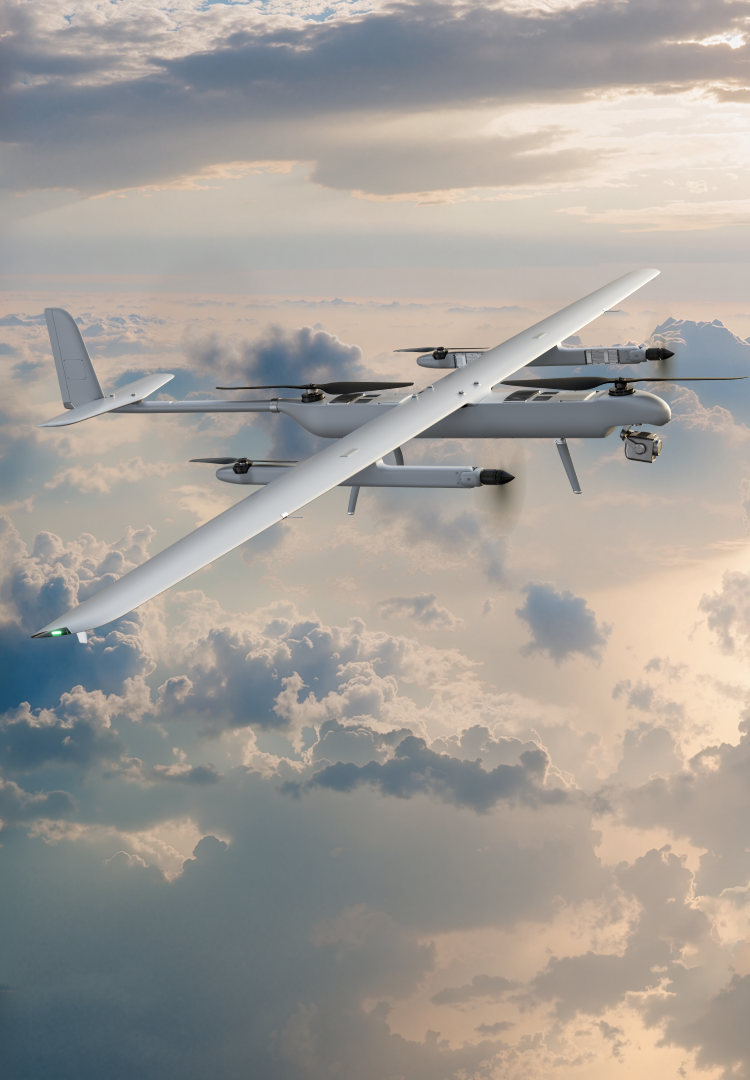

Dragonfish-25
Next-Gen Multi Mission eVTOL
The next-gen Dragonfish-25 continues Autel Robotics’ unique tilt-rotor design, combining the versatility of multi-rotor vertical takeoff and landing (VTOL) and fixed-wing’s long-endurance
Distance: 220 km [3]
Border and Coastal Patrol
Law Enforcement

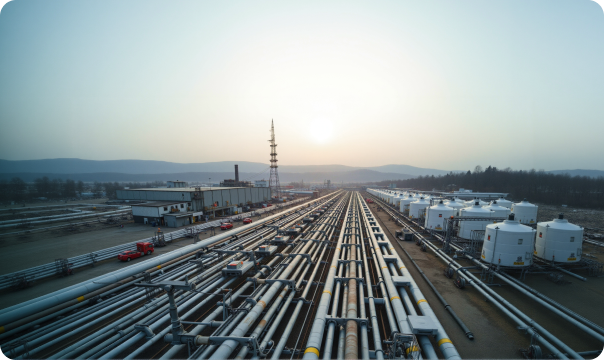

Energy Inspection
Traffic Inspection
Workflow
IP-rated integrated transport case, sturdy and reliable, shockproof and pressure-resistant, designed for easy carrying and long-distance transportation.
A single operator can complete full assembly within 10 minutes, with system self-check completed in 10 seconds for rapid mission readiness.
Quickly generate and create flight paths with a tap on the remote controller screen.
Configure flight routes and waypoints to meet diverse mission requirements.
Select a target to activate intelligent tracking mode.
Utilize zoom and laser rangefinding for efficient and precise target locking.
Enhance search efficiency with infrared mode.
Fully Automated Flight: From takeoff to mission execution, the system operates fully autonomously without manual intervention. Single Operator: An optimized workflow enables a single operator to complete complex missions.
Switch to manual mode at any time when needed to ensure operational safety.
One-Button RTH: Easily initiate automatic return-to-home with the Home button.
Easy Storage: Quickly organize and store the UAV after flight for convenient reuse.
Outstanding Performance
4000m
Maximum Takeoff Altitude
IP45
Protection Rating [4]
12 m/s
Maximum Wind Speed Resistance [5]
-20°C~50°C
Operating Temperature
Quick Assembly
The UAV adopts an innovative tool-free quick-release design that addresses the bulkiness and transport inconvenience of traditional VTOL fixed-wing UAVs. A single operator can complete full assembly within 10 minutes, with system self-check completed in 10 seconds, enabling rapid readiness for unexpected missions.
Extended Endurance
The Dragonfish-25 utilizes a narrow-body design and semi-recessed motors, combined with an automatic propeller lock technology in fixed-wing flight mode to further reduce aerodynamic drag during high-speed flight, effectively enhancing endurance. It can achieve a maximum loaded flight time of 210 minutes [2].

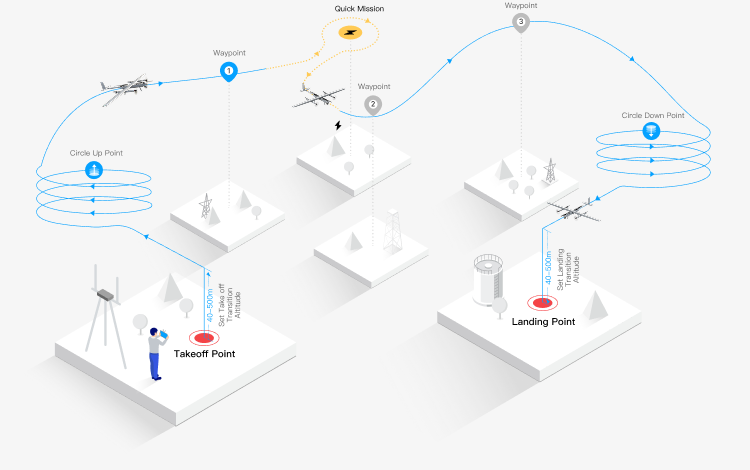

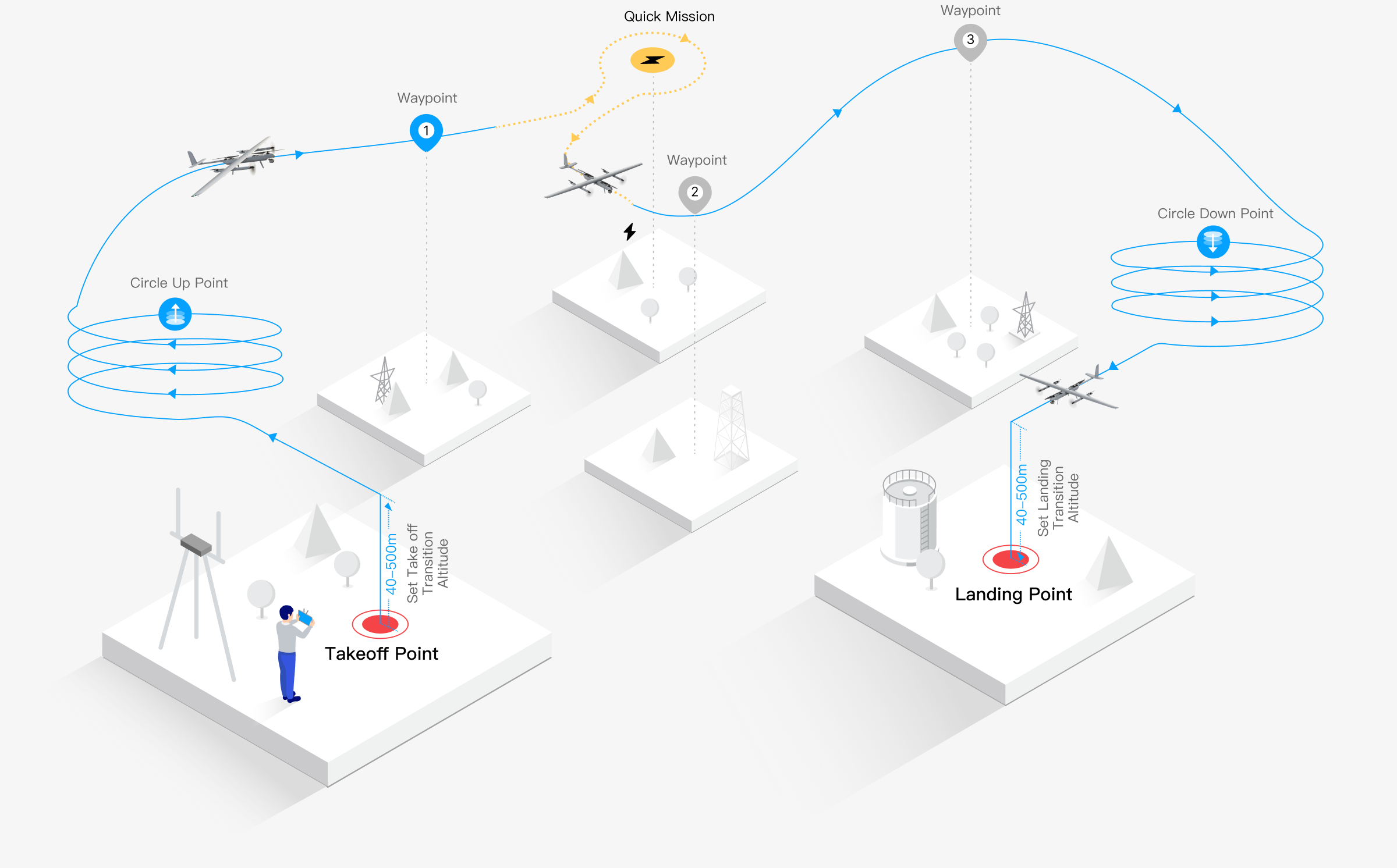

Flight Logic Diagram

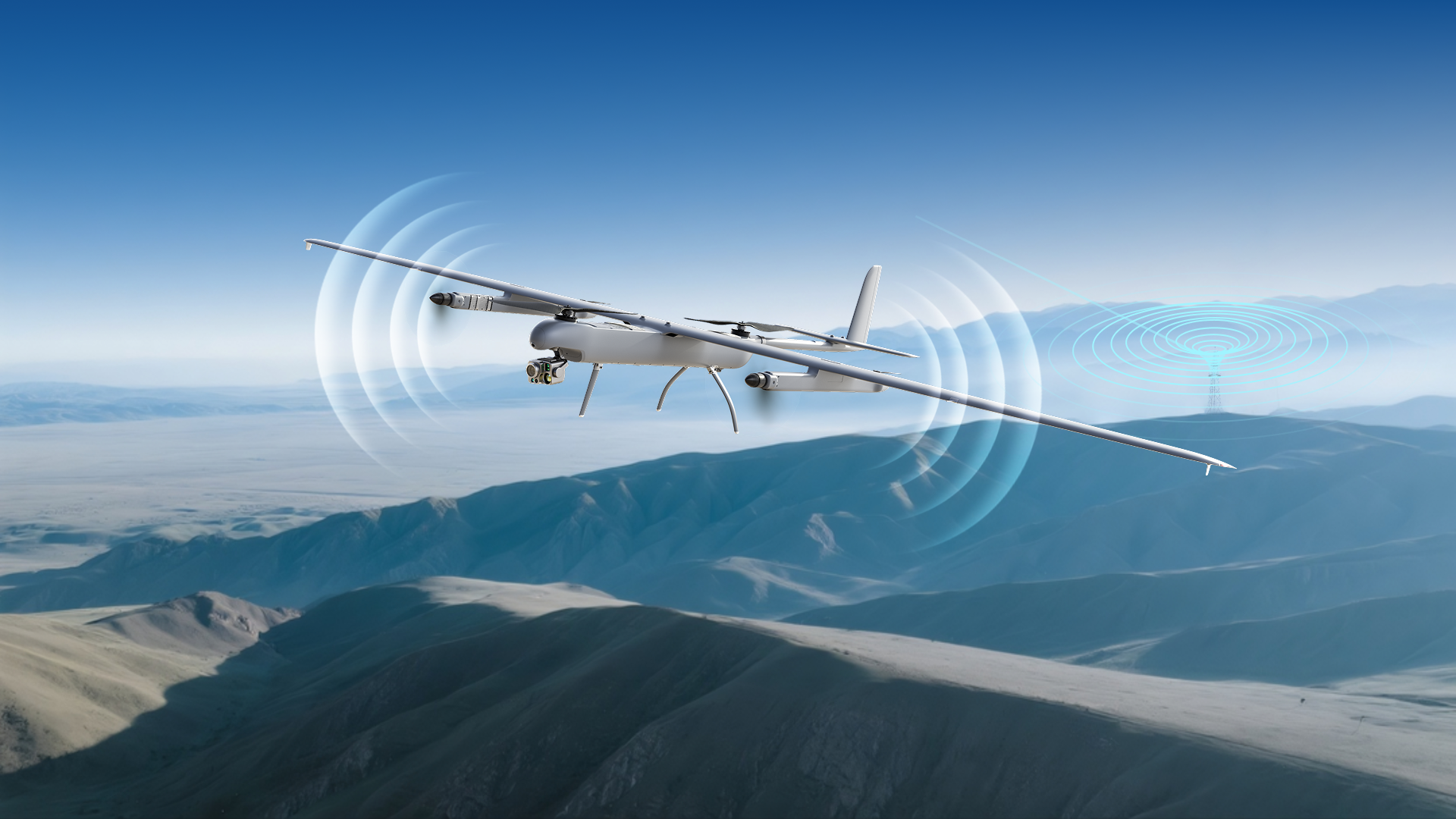

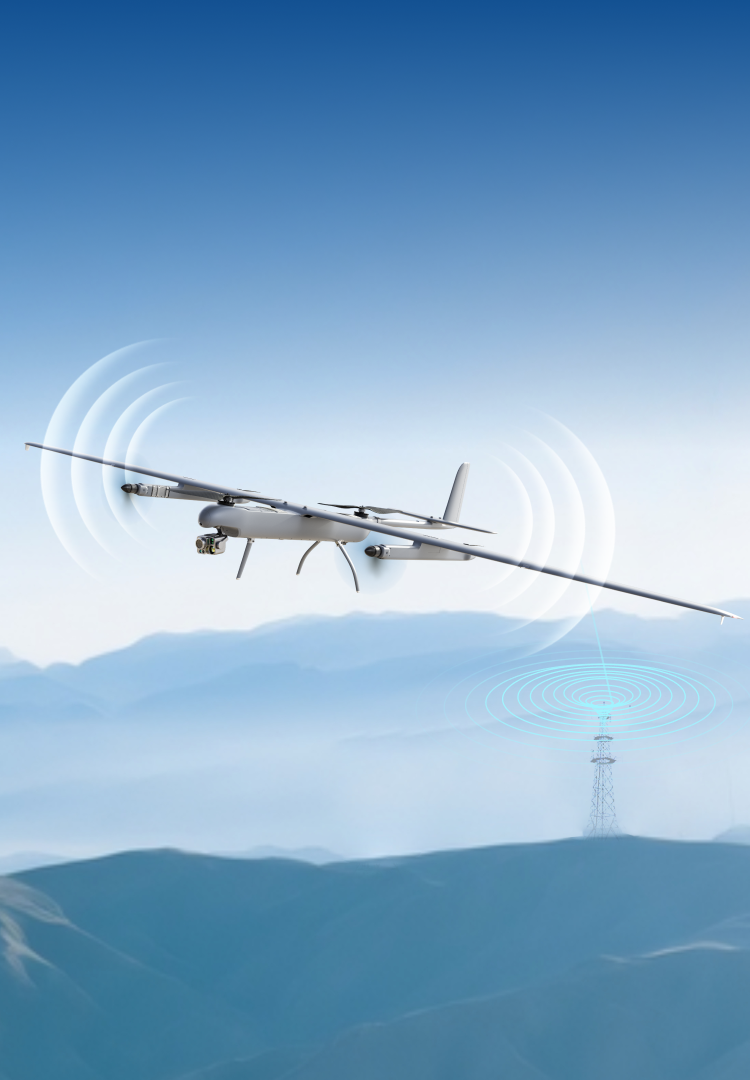

Superior Anti-Interference Capability
In complex environments, the UAV maintains exceptional communication and video transmission performance, featuring strong anti-interference capabilities and stable, reliable transmission.
Smart Operations
Autel Robotics' advanced flight control technology and AI intelligence offers unparalled ease of use and precision.

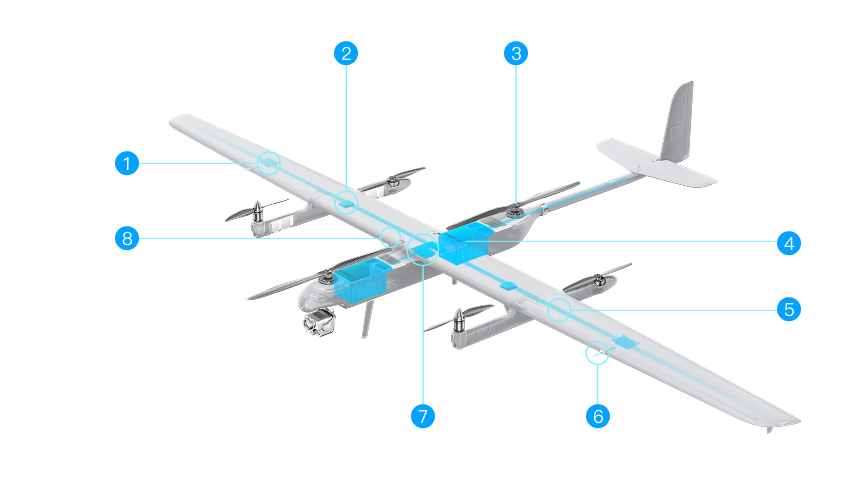

Safety Mechanisms
Redundant designs
The battery, IMU, barometer, compass, RTK, and positioning system all feature redundant designs to ensure maximum flight safety.
High-strength composite materials
Made from high-strength composite materials with powerful propulsion, it confidently withstands wind speeds up to 12 m/s [5].
Fuselage-Integrated RTK Antenna Design
The RTK antenna features an internal fuselage design, effectively reducing aerodynamic drag and providing centimeter-level positioning accuracy for mission flights.
AI fault warning
Full system self-check promptly detect potential issues.
Dual redundant airspeed sensors
Provide real-time accurate airspeed monitoring, wind resistance, and anti-icing capabilities to ensure stable and reliable flight.
Triple-redundant CAN bus communication
Enables real-time monitoring of control surfaces and motor status, ensuring seamless command execution and strong electromagnetic interference resistance.
Flight Mode Switching
In fixed-wing flight mode, when affected by complex environments, the flight control system will automatically switch to multirotor mode for assisted flight.
Exceptional flight control technology
Powered by Autel Robotics' exceptional flight control technology, ensuring stable and reliable flight performance.

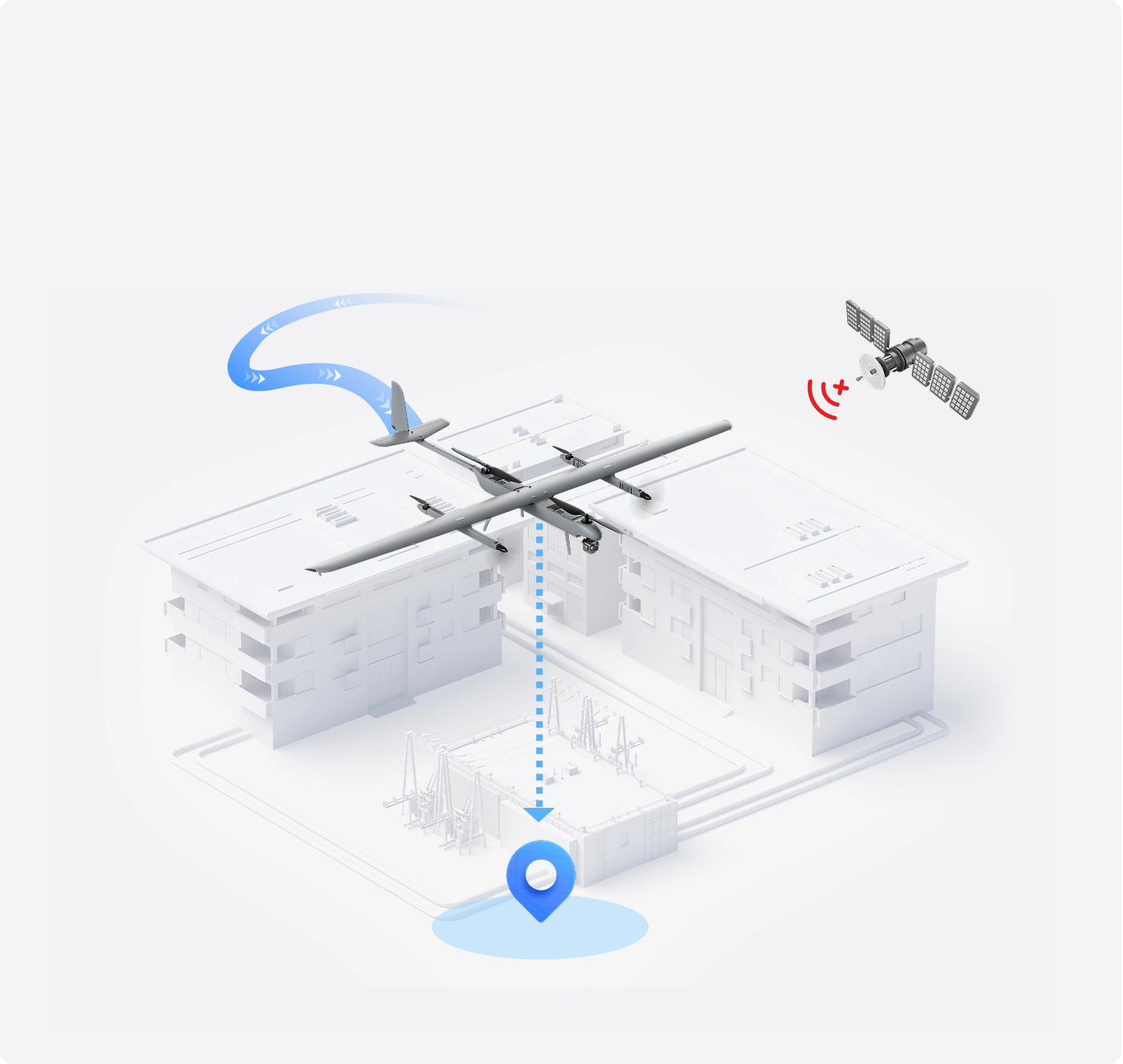

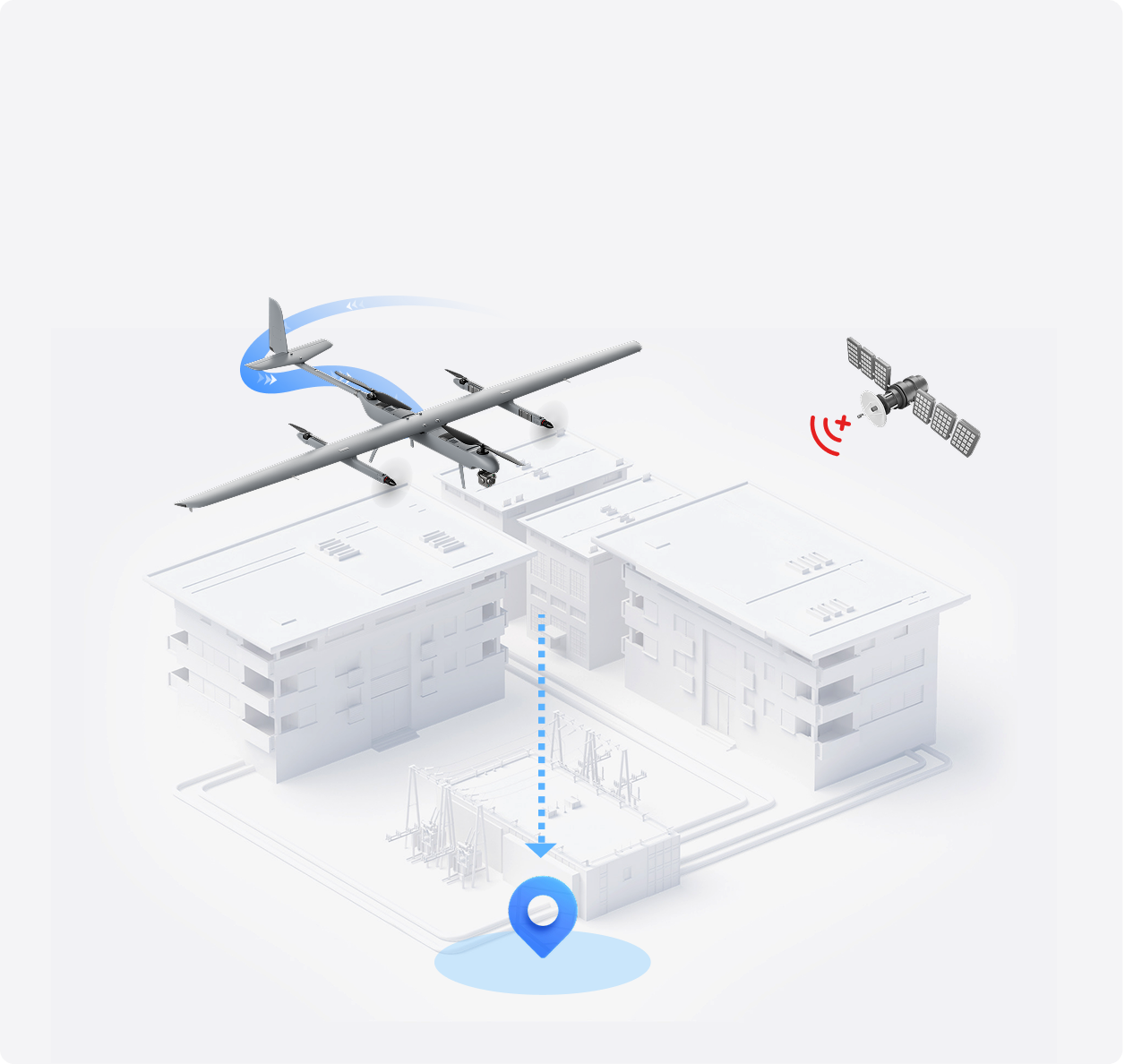

GNSS Loss Protection
When operating in non-GNSS environments, the UAV activates landing protection, automatically descending from its current position to ensure safety.

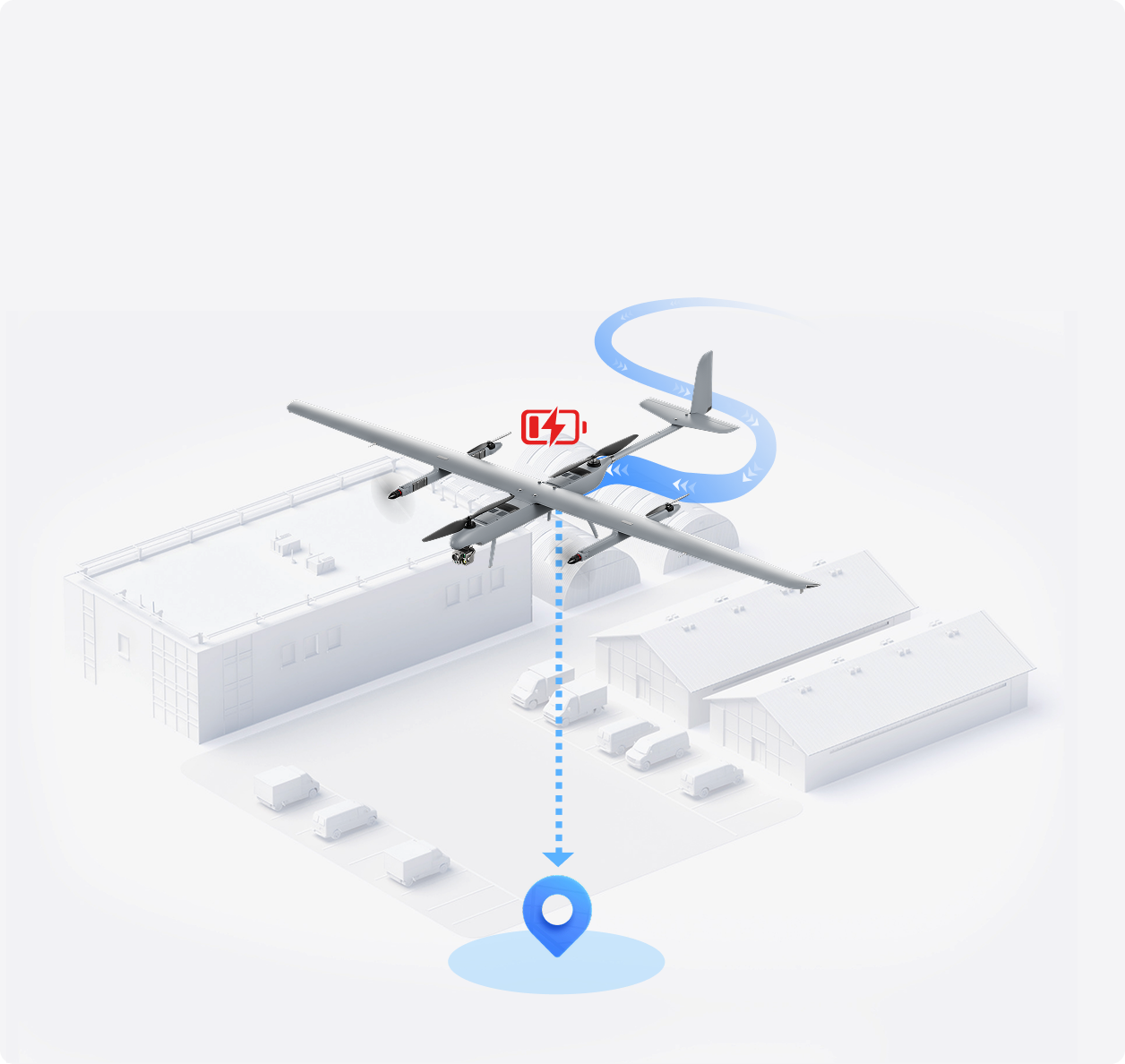

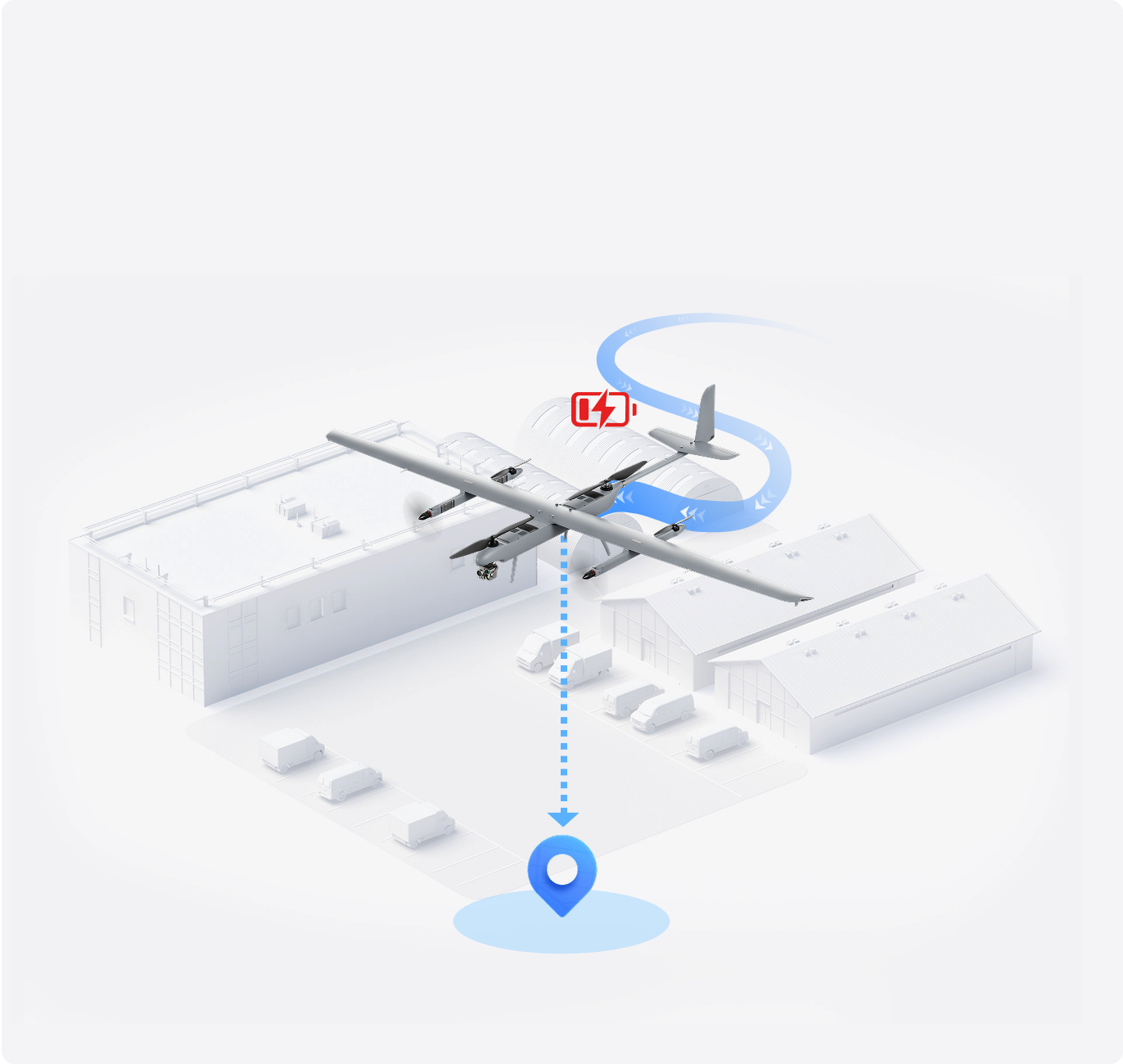

Intelligent Low-Battery RTH
Users can customize the expected landing battery level. The UAV calculates the optimal return timing in real-time based on current battery levels and flight status, ensuring it lands with a battery level close to the user-defined threshold.

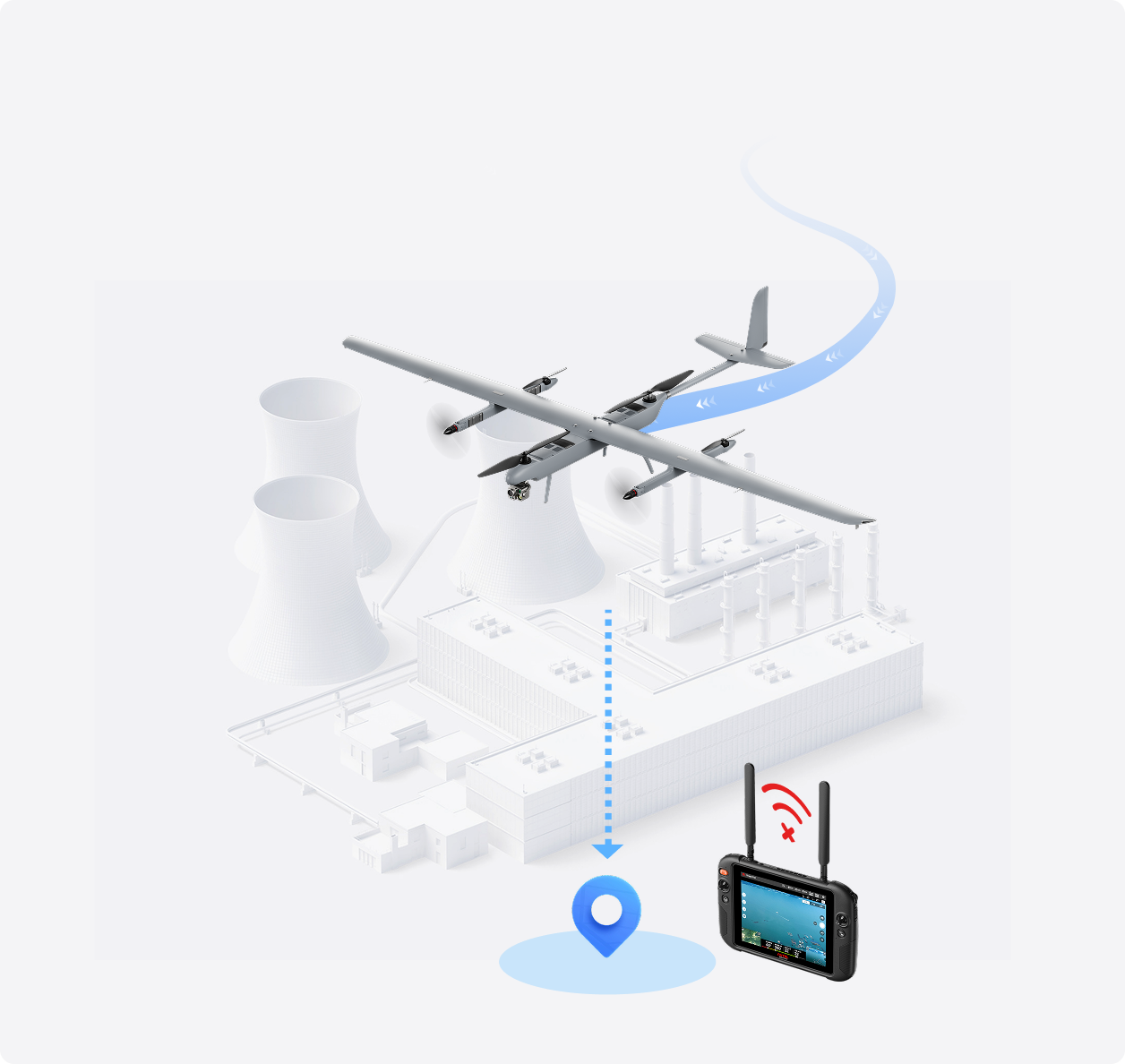

Auto RTH on Signal Loss
If signal between the UAV and the ground station is interrupted, signal-loss protection is enabled. If GNSS signals are available, the UAV initiates automatic RTH.

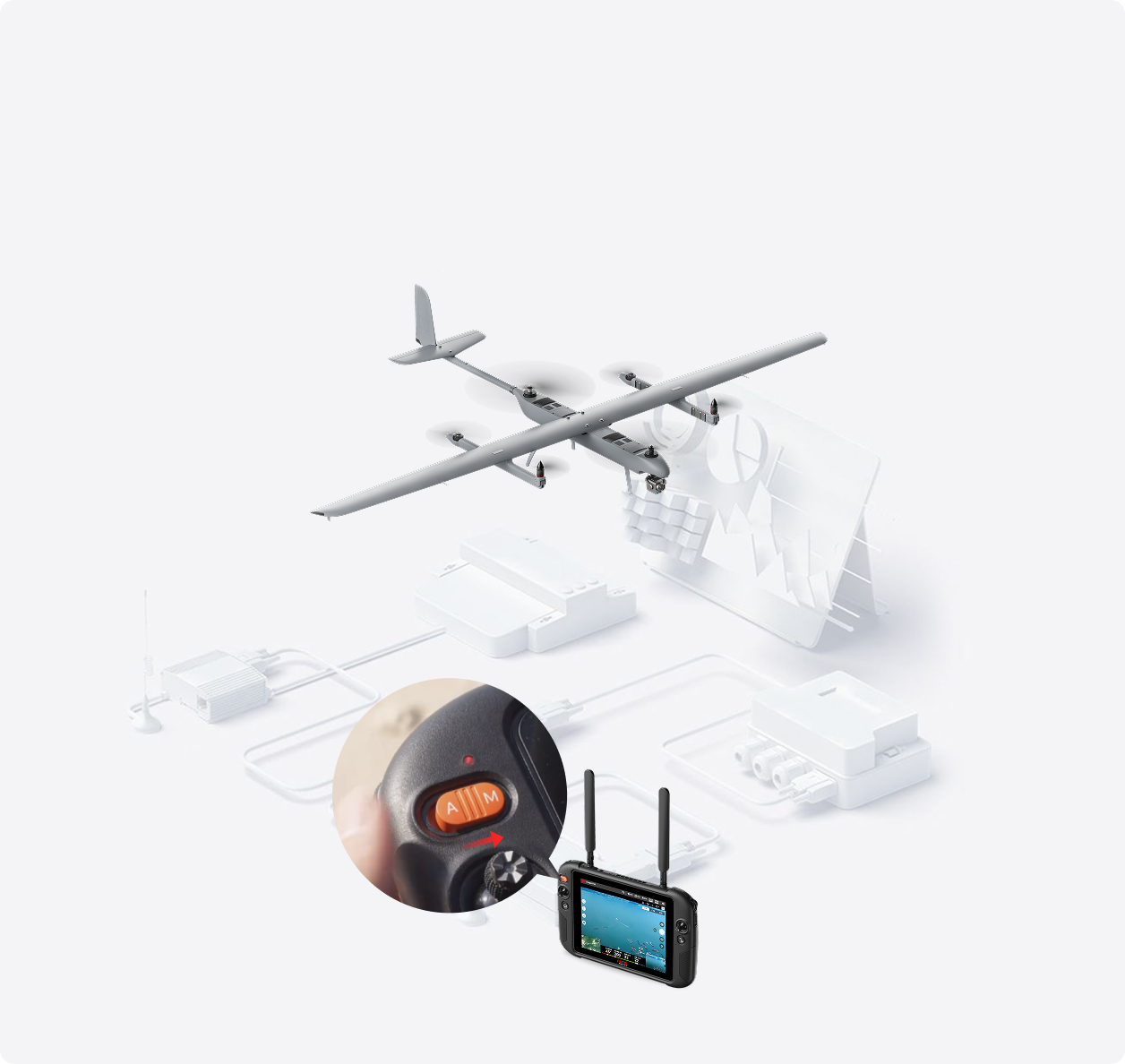

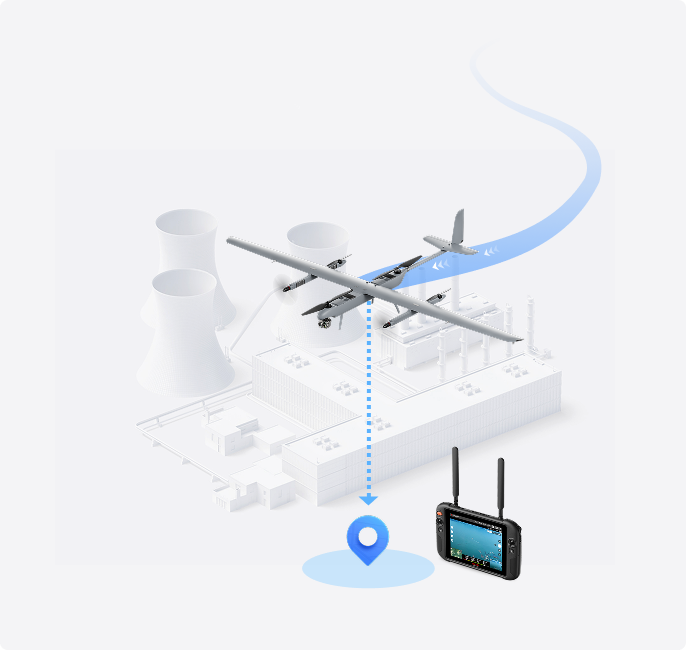

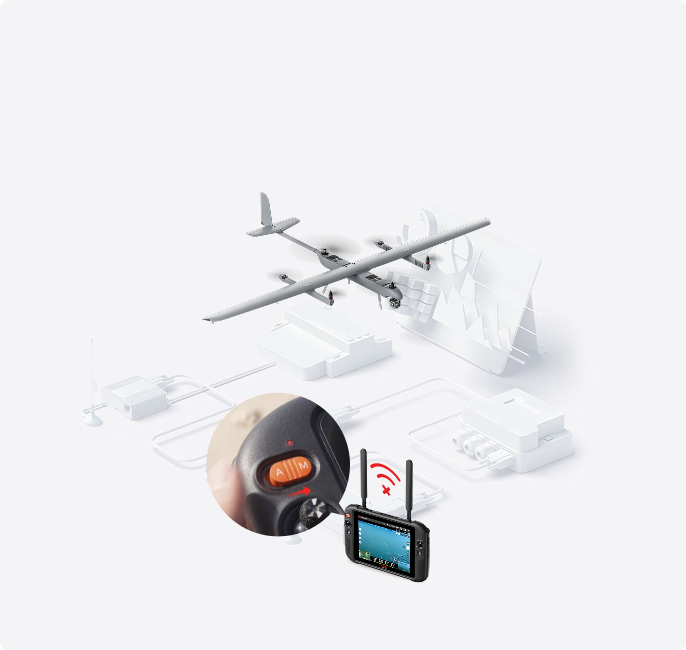

Emergency Manual Override
In case of an emergency, you can switch the remote controller to M mode at any time to immediately take manual control, ensuring flight safety.
Payload
The Dragonfish-25 can be freely equipped with a range of class-leading EO/MWIR payloads such as the DG-T5 and DG-T5L, breaking through lighting limitations to enable simple all-weather operations.
1/2"CMOS
Effective pixels: 12MP
Aperture: f/2.8
Video resolution: 4000×3000@25fps
Photo size: 4000×3000
1/1.8"CMOS
Effective pixels: 8MP
35x optical zoom
560x hybrid zoom
Video resolution: 3840×2160@30fps
Photo size: 3840×2160
640*512 Resolution
FOV 42°
Focal length: 13 mm
Measurement range: -20℃~150℃ / 0℃~550℃
Measurement accuracy: ±3℃ or ±3% of reading
640*512 Resolution
FOV 12.4°
Focal length: 45 mm
Measurement range: -20℃~150℃ / 0℃~550℃
Measurement accuracy: ±3℃ or ±3% of reading
Measurement range: 10-2000m
Measurement accuracy: ≤400m:1m；＞400m: D×0.3% * where D is the distance to a vertical reflecting plane
1/2"CMOS
Effective pixels: 12MP
Aperture: f/2.8
Video resolution: 4000×3000@25fps
Photo size: 4000×3000
1/1.8"CMOS
Effective pixels: 8MP
35x optical zoom
560x hybrid zoom
Video resolution: 3840×2160@30fps
Photo size: 3840×2160
640×512 Resolution
Focal length: 25 mm
Measurement range:-20℃~150℃ / 0℃~550℃
Measurement accuracy: ±3℃ or ±3% of reading
Measurement range: 10-2000m
Measurement accuracy: ≤400m:1m; ＞400m: D×0.3%* where D is the distance to a vertical reflecting plane
Adjustable FOV: 2°-70°
Lighting distance: 800m
Accessories
Dragonfish Ground Station
Dragonfish Ground Station
Display: 9.7-inch screen,1000-nit maximum brightness,2048x1536 resolution.
Battery Life: 4.5 hours.
Storage: Built-in 256GB storage.
Environmental Adaptability: Operating temperature range from -20°Cto 50°C.
Autel Smart Antenna Transmission
Autel Smart Antenna Transmission
The Autel Smart Antenna Transmission integrates directional and omnidirectional antennas, a base station motherboard, and an RTK antenna, enabling up to 45 km* ultra-long transmission with enhanced anti-interference performance.
More+Base Station (Optional)
Dragonfish Base Station (Optional)
With centimeter-level positioning accuracy and strong anti-interference capabilities, the dragonfish base station ensures reliable UAV operations even in challenging environments such as near high-voltage lines and metal structures.
Contact us now to find out moreabout the Dragonfish Series
* Before conducting flight operations, users must familiarize themselves with and comply with relevant local laws and regulations. Ensure the aircraft has obtained the necessary certifications and legal airspace permissions.
* The parameters and specifications listed on this page are based on results measured under controlled testing conditions using the Autel Mapper. Please note that results may vary under different external environmental conditions, usage methods, and firmware versions. Therefore, actual user experience should take precedence.
* Regarding flight time, the data is obtained under conditions with no wind or other flight interferences, with the aircraft's obstacle avoidance behavior set to braking mode, and the camera performing photo capture only. The aircraft flies continuously at 8 m/s at sea level until the battery reaches 0% capacity. This data is for reference only. To ensure flight safety, users should closely monitor the App's notifications during actual flight operations.
* According to relevant laws and regulations, countries such as China and South Korea only permit the use of downward-facing 24G radar (i.e., millimeter-wave radar installed on the underside of the aircraft for downward detection). For specific usage requirements, please refer to the laws and regulations of the respective country.
* Refers to the maximum wind speed the UAV can withstand in fixed-wing mode.
